Description

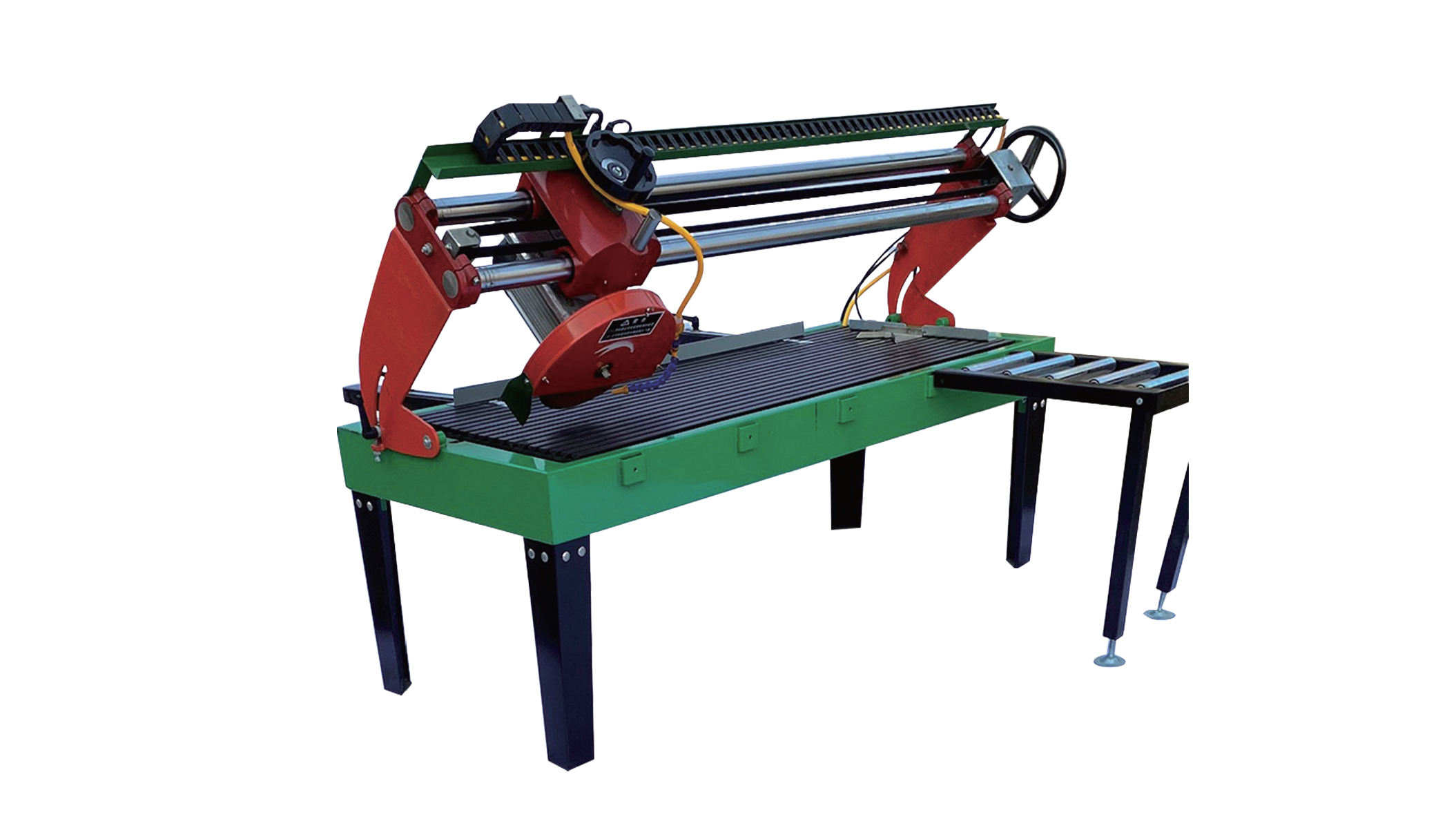

The Portable Stone Cutting Machine is a compact and versatile solution for precision cutting of granite, marble, porcelain, ceramic, quartz, and other stone materials. Designed for workshops and on-site fabrication, it combines high cutting accuracy with easy operation and reliable performance.
Available in multiple cutting capacities, the machine features adjustable blade sizes, 45° bevel cutting capability, and robust construction, making it ideal for professional tile and stone processing.
Features
- Portable & Compact Design
- Precision Linear Guide System
- 45° Bevel Cutting
- High-Speed Blade Operation
- Suitable for Wet Cutting
- Durable Heavy-Duty Frame
- Easy Transportation & Installation
- Available in Multiple Cutting Capacities
- Ideal for Workshop & On-Site Use
Applications
- Granite
- Marble
- Porcelain Tiles
- Ceramic Tiles
- Quartz
- Engineered Stone
- Stone Slabs
- General Stone Fabrication
Technical Data
| Specification | OSC-H800M | OSC-H800L | OSC-H1200M | OSC-H1200L |
|---|---|---|---|---|
| Power | 2.2 kW / 3 HP | 2.2 kW / 3 HP | 2.2 kW / 3 HP | 2.2 kW / 3 HP |
| Voltage / Frequency | 220/380 V • 50/60 Hz | 220/380 V • 50/60 Hz | 220/380 V • 50/60 Hz | 220/380 V • 50/60 Hz |
| Blade Size | 250–300 mm | 250–400 mm | 250–300 mm | 250–400 mm |
| Arbor Bore Size | 25.4 / 50 mm | 25.4 / 50 mm | 25.4 / 50 mm | 25.4 / 50 mm |
| Blade Speed | 2800–3400 rpm | 2800–3400 rpm | 2800–3400 rpm | 2800–3400 rpm |
| Maximum Cutting Length | 800 mm | 1200 mm | 800 mm | 1200 mm |
| Maximum Cutting Depth | 70 mm | 125 mm | 70 mm | 125 mm |
| Bevel Cutting | 45° | 45° | 45° | 45° |
| Weight | 130 / 160 kg | 135 / 165 kg | 150 / 180 kg | 155 / 185 kg |
