Description:

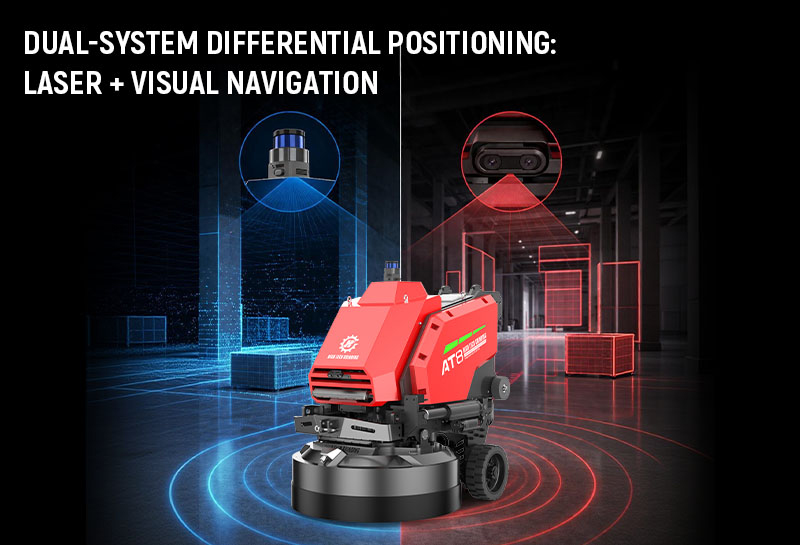

TruePlane Superflat Control Architecture: Employs advanced laser reference sensors that actively correct floor wave variations rather than merely mimicking existing concrete contours.
Dynamic Gyroscopic Tilt Compensation: Continuously monitors side to side roll variations in real time to stabilize target planes across expansive industrial structures.
Massive Multi Head Planetary Dimension: Drives eight independent grinding discs via dual thirty horsepower motors spanning a massive fifteen hundred sixty millimeter width.
Very Narrow Aisle Warehouses And Logistics Platforms: Designed for elite flooring firms executing ultra flat Superflat classification pavements with strict specifications.
Layered Grinding Precision Software: Allows digital input for multi pass micro cut parameters down to two millimeters per layer for high point eradication.

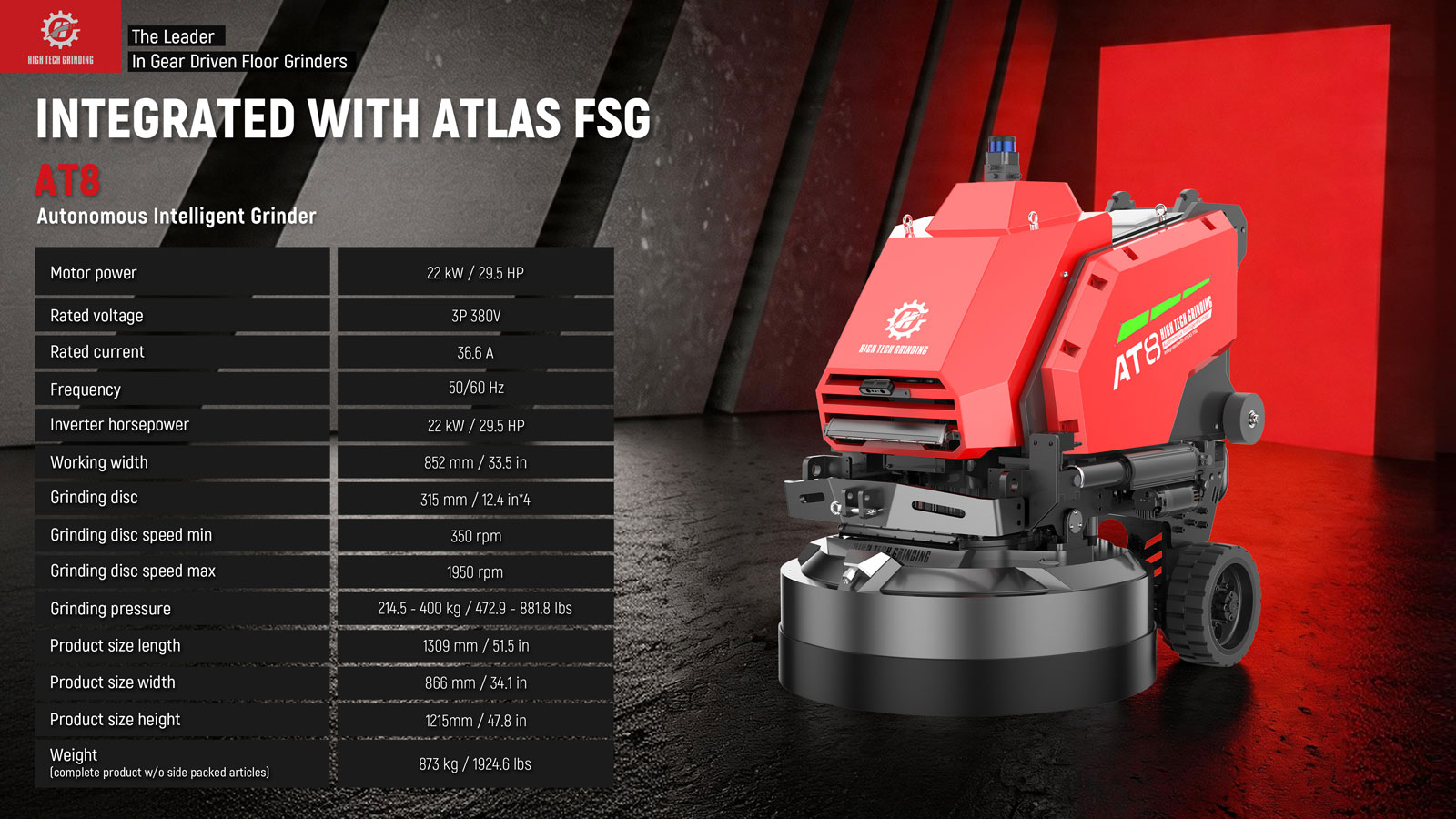

| Specification | Value |
|---|---|
| Product | AT8 Autonomous Floor Grinder |
| Motor Power | 22 kW / 25 HP |
| Rated Voltage | 380V, 3 Phase |
| Rated Current | 36.6 A |
| Frequency | 50/60 Hz |
| Inverter Power | 18.5 kW / 25 HP |
| Working Width | 852 mm (33.5 in) |
| Grinding Discs | Ø315 mm (12.4 in) × 4 |
| Minimum Grinding Speed | 350 rpm |
| Maximum Grinding Speed | 1950 rpm |
| Grinding Pressure | 214.5–400 kg (472.9–881.8 lbs) |
| Product Dimensions (L × W × H) | 1309 × 866 × 1215 mm (51.5 × 34.1 × 47.8 in) |
| Machine Weight | 873 kg (1924.6 lbs) |
