Description:

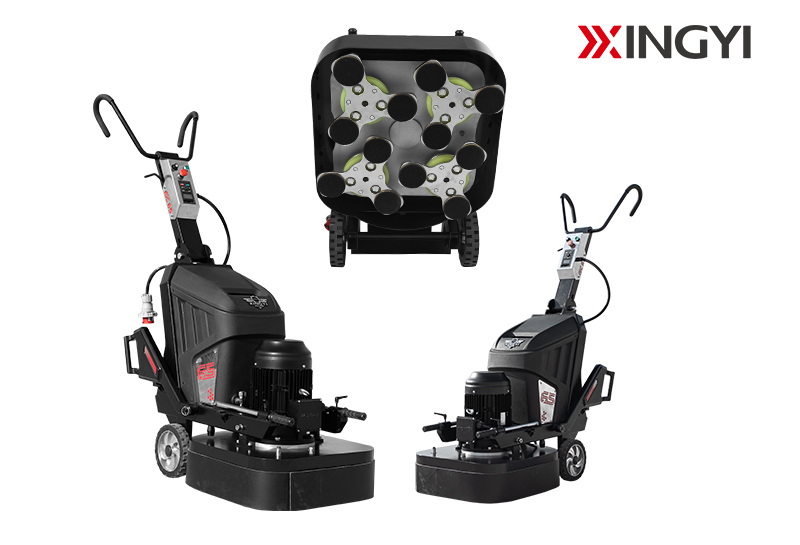

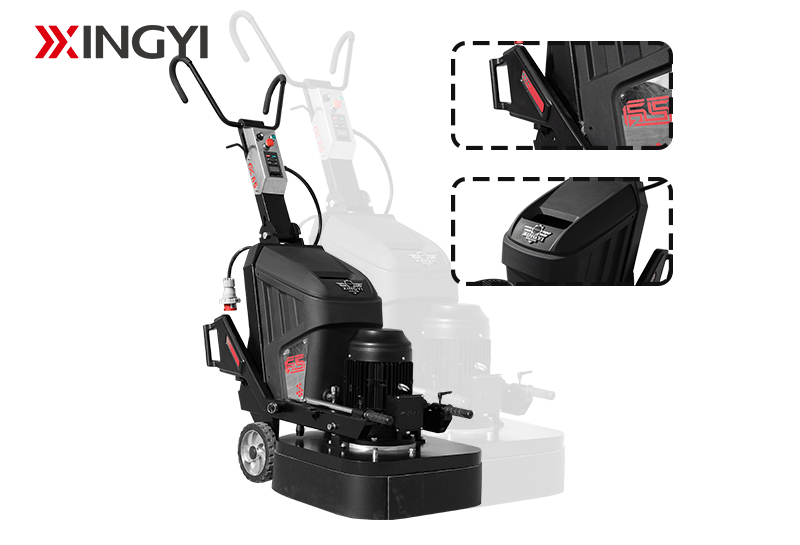

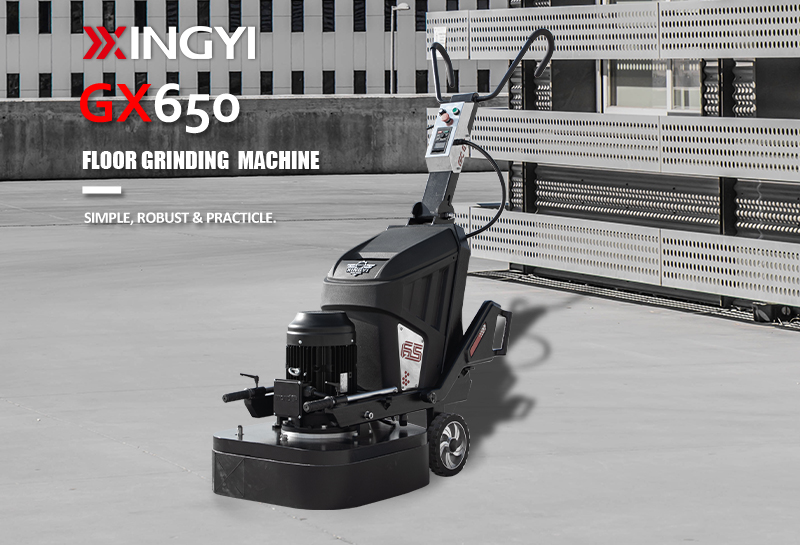

GX650 is used to grind (rough grind, fine grind and polish) concrete,natural stone and terrazzo floors or other materials specified in thismanual or recommend by XINGYI.The swing lever and handle can be set in many different tiltedpositions. The grinding head of the machine can be used with differentgrinding plate for operation. The anti-dust tape covers the working area ofgrinding head. Because of floating design, the dust cover always touch thefloor, which not only ensures that the operator does not touch the rotatingmechanical parts, but also reduces the exposure of dust and improves thedust absorption efficiency of the vacuum cleaner.When dry grinding, In order to being exposed to air and posing a threatto the health of the operator and nearby people.Make sure that thevacuum cleaner is connected to grinder (equipped with a vacuum cleanermanufactured by Xingyi makes better effect) Due to inhalation of dust isharmful in the course of operation, even there is a vacuum cleanerprotective mask is also necessary to protect health. Dust is harmful, soplease wear protectively.The machine can used with different Xingyi abrasive. Due to thedifferent ground materials, the abrasive discs used in grinding are alsodifferent.
Specifications:
| Specification | Value |
|---|---|
| Working Width | 650 mm |
| Motor Power | 9.5 kW |
| Voltage | 380–480V 3 Phase / 200–240V 3 Phase / 200–240V Single Phase |
| Frequency | 50/60 Hz |
| Rotating Speed | 350–1680 rpm / 350–1500 rpm |
| Grinding Discs | Ø348 mm × 4 |
| Operation | Walk-Behind |
| Water Tank Capacity | 30 L |
| Weight | 317 kg |
| Dimensions (L × W × H) | 1980 × 650 × 1135 mm |
