Description

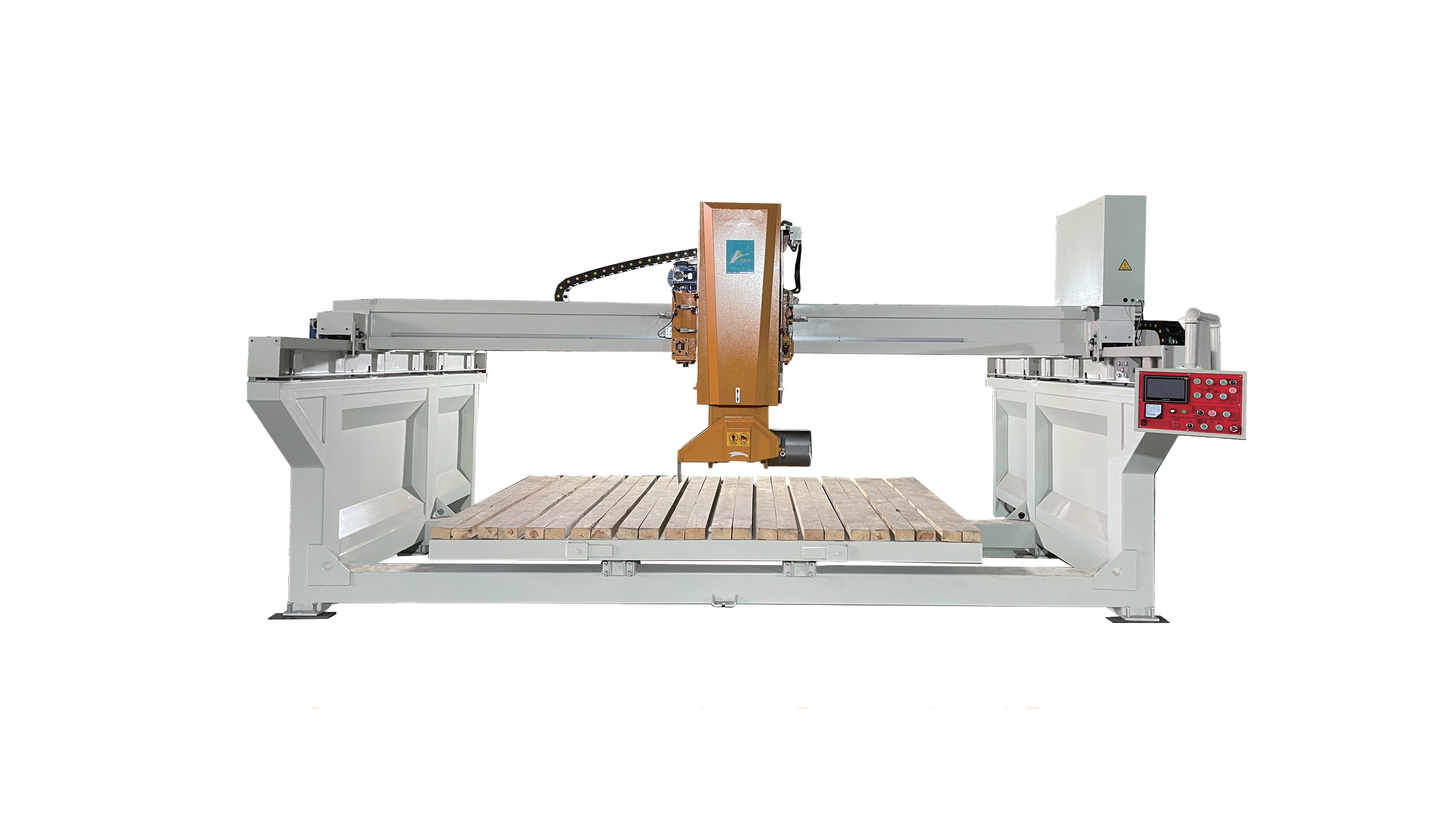

The Infrared Bridge Type Integrated Stone Cutting Machine is a high-performance bridge saw engineered for precision cutting, chamfering, and processing of granite, marble, quartz, engineered stone, and natural stone slabs.
Featuring an advanced PLC control system, infrared positioning technology, hydraulic lifting, and precision guide rails, the machine delivers outstanding cutting accuracy, smooth operation, and exceptional reliability for professional stone fabrication facilities.
Features
- PLC Intelligent Control System
- Infrared Cutting Positioning
- Precision Bridge Saw Technology
- Hydraulic Head Lifting
- Chrome-Plated Precision Guide Rails
- Frequency Converter Drive System
- Heavy-Duty Industrial Construction
- High Cutting Accuracy
- Stable & Smooth Operation
- Optional Blade Tilt Function
Applications
- Granite Processing
- Marble Fabrication
- Quartz Countertops
- Engineered Stone
- Stone Slab Cutting
- Chamfer & Edge Processing
- Stone Manufacturing Plants
- Professional Stone Workshops
Technical Data
| Specification | SYQC-450-YT | SYQC-600-YT | SYNC-450-4+1 |
|---|---|---|---|
| Saw Blade Diameter (mm) | 350–450 | 350–600 | 350–450 |
| Max Workpiece Height (mm) | 100 | 180 | 100 |
| Workbench Size (mm) | 3200 × 2000 | 3200 × 2000 | 3400 × 2000 |
| Table Tilt Angle | 0°–85° | 0°–85° | 0°–85° |
| Table Rotation | 0°–90° / 0°–360° (Optional) | 0°–90° / 0°–360° (Optional) | C-Axis 360° |
| Head Chamfer Tilt | 0°–45° (Optional) | 0°–45° (Optional) | A-Axis 0°–45° (Servo Drive) |
| Water Consumption (m³/h) | 3 | 3 | 3 |
| Motor Power (kW) | 15 | 18.5 | 15 |
| Total Installed Power (kW) | 20.5 | 24 | 20.5 |
| Overall Dimensions (mm) | 6000 × 3600 × 2650 | 6000 × 3600 × 2950 | 6000 × 3600 × 2950 |
| Machine Weight (kg) | 5800 | 6000 | 6000 |
Features & Benefits
- High-Precision Infrared Alignment
- Ergonomic PLC Operating Interface
- Dual Hydraulic Lifting System
- Precision Chrome Guide Columns
- Waterproof & Dustproof Guide Sleeves
- Frequency-Controlled Bridge Movement
- Adjustable Cutting Speed
- 90° Rotating Cutting Head
- Optional 45° Blade Tilt for Mitre Cutting
- Heavy-Duty Integrated Machine Frame
