Description

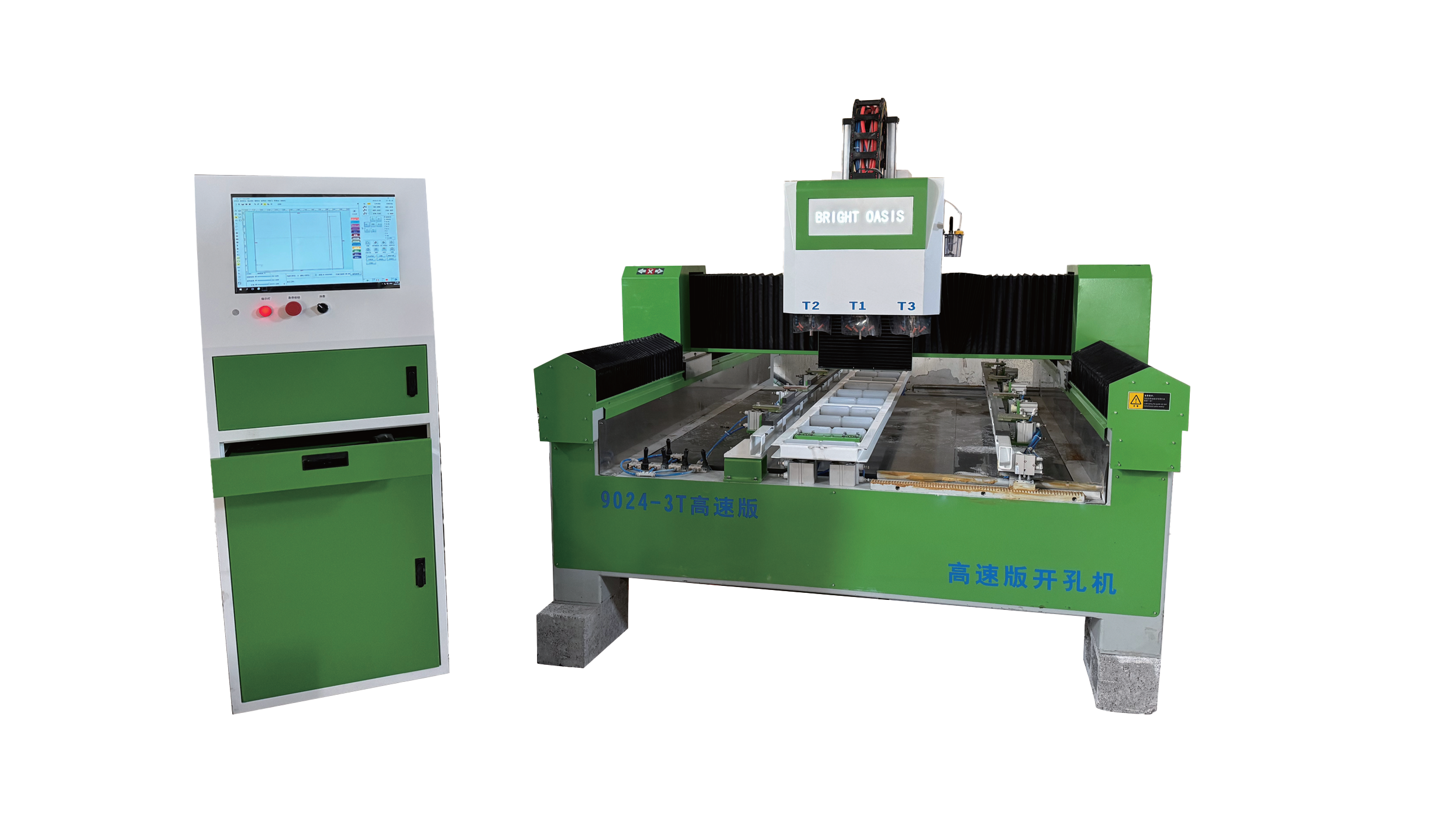

The High-Speed Three-Process CNC Drilling Machine is designed for high-precision drilling, routing, and machining of quartz, granite, marble, engineered stone, and other solid surface materials. Equipped with a three-spindle processing system, it delivers fast production speeds, excellent positioning accuracy, and reliable performance for countertop fabrication and custom stone processing.
Its heavy-duty construction, intelligent control system, and automatic workpiece positioning make it ideal for modern stone fabrication workshops requiring high productivity and precision.
Features
- Three-Process CNC Drilling System
- High-Speed Production
- Automatic Workpiece Positioning
- Precision CNC Control
- High Accuracy Repeat Positioning
- Water-Cooled Spindle System
- Heavy-Duty Machine Structure
- Industrial Continuous Operation
- Suitable for Multiple Tool Sizes
- Efficient Stone Fabrication
Applications
- Quartz Countertops
- Granite Processing
- Marble Fabrication
- Engineered Stone
- Vanity Tops
- Wash Basins
- Custom Sink Cut-Outs
- Special Shape Machining
- Routing & Drilling Operations
Technical Data
| Specification | NX-1024-3T |
|---|---|
| Maximum Cutting Size | 1000 × 3000 mm |
| Feed Height | 350 mm |
| Maximum Running Speed (X/Y) | 20 m/min |
| Maximum Running Speed (Z) | 10 m/min |
| Repeat Positioning Accuracy | 0.01 mm |
| Control System | Proprietary CNC Control System |
| Workpiece Fixing Method | Cast Aluminium Worktable + Pneumatic Positioning System |
| Spindle Motor Power | 5.5–7.5 kW |
| Spindle Speed | 6,000–24,000 rpm |
| Cutter Diameter | Ø3.175 / 4 / 6 / 8 / 10 / 12.7 mm |
| Tool Cooling | Recirculating Water Cooling |
| Total Power | 15 kW |
| Voltage | 380 V |
| Machine Dimensions | 3400 × 2700 mm |
| Gross Weight | 1000 kg |
