Description:
High Efficiency. Intelligent Control. Built for Large Projects.
The 1560LE is a heavy-duty ride-on remote concrete grinder designed for high-output surface preparation and polishing. With an ultra-wide 1550mm grinding width and dual high-power planetary heads, it delivers exceptional productivity for warehouses, logistics centers, and large commercial floors.
Engineered for performance, stability, and operator comfort, the 1560LE combines intelligent control with powerful grinding capability.
Key Systems

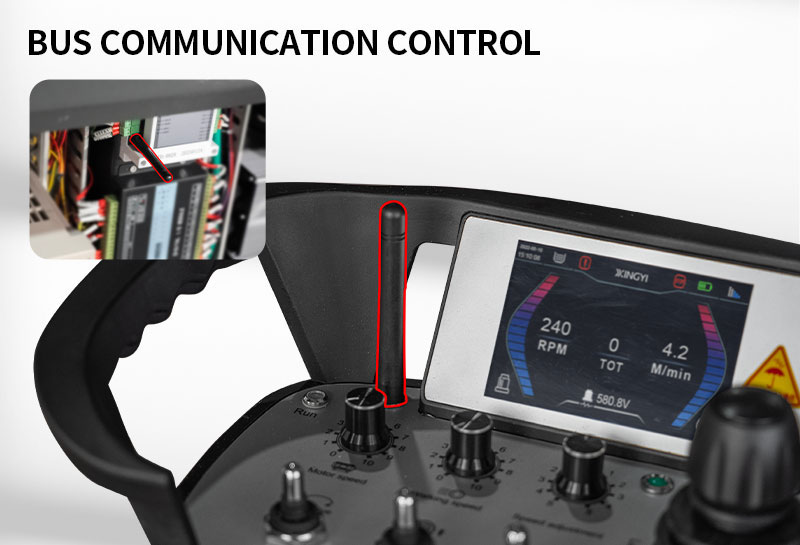

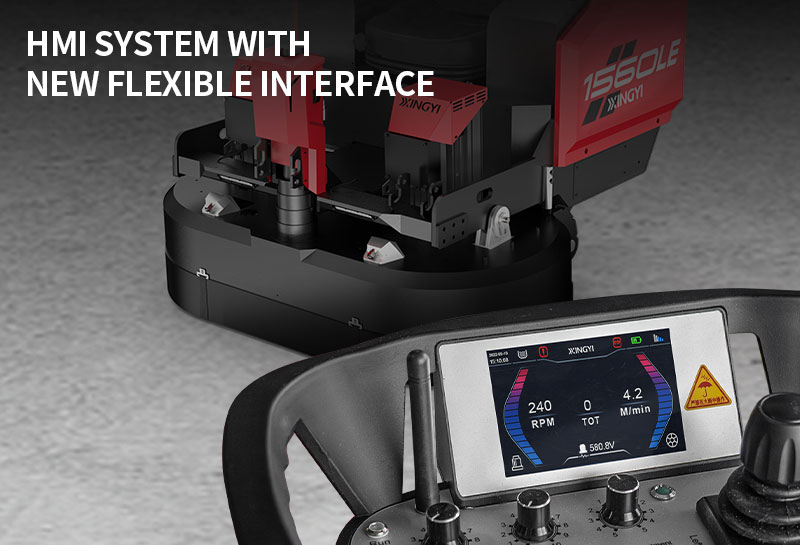

● Intelligent HMI control system
● Ride-on + remote control operation

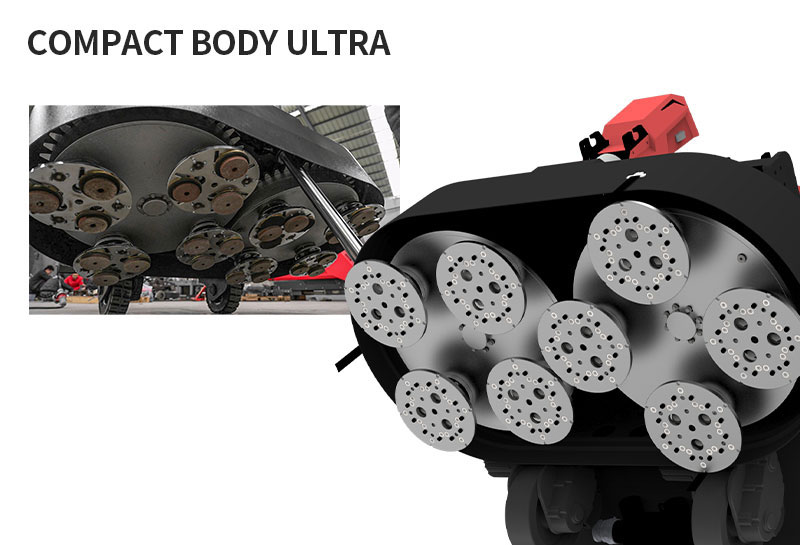

● Dual planetary grinding heads
● 3D floating grinding system
● Heavy grinding pressure system
● Flexible turning system
● Mist spray water system
● Easy transport & detachable design
● Industrial-grade drive system
The 1560LE is built for contractors who demand speed, consistency, and maximum output on large-scale projects.
Power meets productivity — 1560LE.
| Specification | Value |
|---|---|
| Product | 1560LE |
| Motor Power | 18.5 kW / 25 HP |
| Rated Voltage | 3P 380 V |
| Rated Current | 43.1 A |
| Input Frequency | 50 Hz / 60 Hz |
| Inverter | 18.5 kW / 25 HP |
| Grinding Width | 860 mm |
| Diamond Tool Size | 315 mm |
| Tilt Position (L × W × H) | 1913 × 979 × 1896 mm / 75.31 × 38.54 × 74.65 in |
| Working Position (L × W × H) | 2402 × 979 × 1165 mm / 94.57 × 38.54 × 45.87 in |
| Packing Position (L × W × H) | 1615 × 979 × 1077 mm / 63.58 × 38.54 × 45.87 in |
| Maximum Dimensions (L × W × H) | 2890 × 979 × 1896 mm / 113.78 × 38.54 × 74.65 in |
| Machine Weight | 758 kg |
| Wire Size | 10 mm² |
| Storage Temperature | -20°C to +60°C (-4°F to +140°F) |
| Operating Temperature | -10°C to +40°C (14°F to +104°F) |
| Humidity | Below 95% (No Condensation) |
