Description

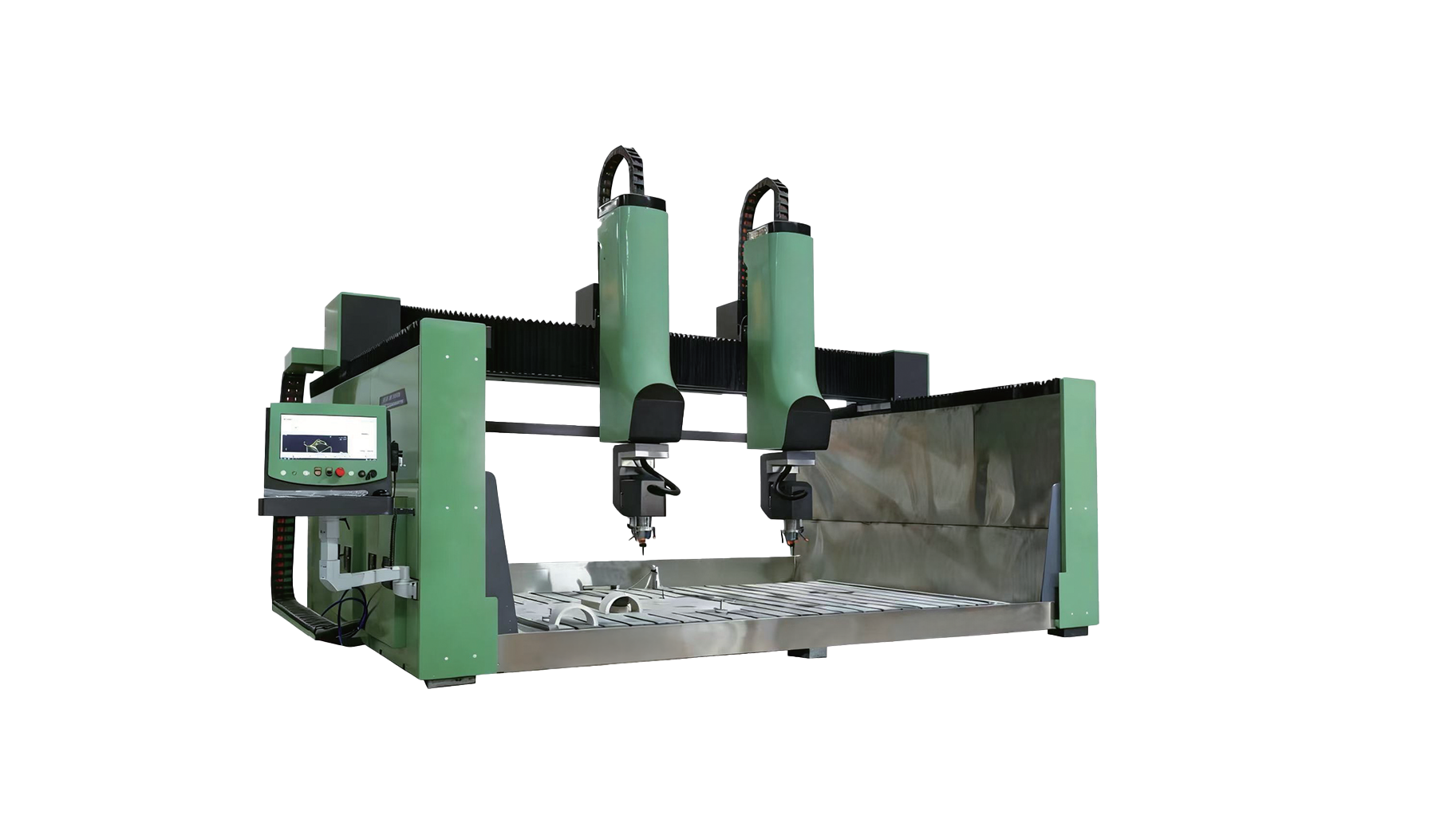

The XJ-3020X-2D Double-Head Five-Axis CNC Stone Carving Machine is engineered for high-productivity engraving, carving, routing, and precision machining of granite, marble, quartz, engineered stone, and other natural stone materials. Equipped with two independent five-axis motorized spindles, it enables simultaneous processing of identical workpieces, significantly increasing production efficiency while maintaining exceptional machining accuracy.
Designed for professional stone fabrication facilities, the machine combines advanced CNC control, servo-driven motion, and high-speed spindle technology to produce complex three-dimensional carvings with outstanding precision and repeatability.
Features
- Dual Five-Axis CNC Spindles
- Simultaneous Twin-Head Machining
- High-Speed Motorized Spindles
- Precision CNC Control System
- Servo Motor Drive System
- Excellent Positioning Accuracy
- Water-Cooled Spindles
- Supports Multiple Engraving Tool Sizes
- Heavy-Duty Industrial Construction
- Ideal for High-Volume Production
Applications
- Granite Engraving
- Marble Carving
- Quartz Processing
- Engineered Stone
- Monument & Memorial Fabrication
- Decorative Stone Panels
- Architectural Stone Components
- Custom Stone Artwork
- 3D Stone Sculptures
Technical Data
| Specification | XJ-3020X-2D |
|---|---|
| Platform Dimensions | 3000 × 1300 mm |
| X/Y/Z Axis Stroke (per Head) | 2500 / 1300 / 1000 mm |
| B/C Axis Stroke (per Head) | ±110° / 570 mm |
| Feed Height | <600 mm |
| Air Speed | 20 m/min |
| Processing Speed | 15 m/min |
| Spindle Power | 5.5–7.5 kW Motorized Spindle |
| Spindle Speed | 6,000–24,000 rpm |
| Motor | Servo Motor |
| Reducer | Speed Ratio 7 |
| Operating Voltage | AC220V/50Hz or AC380V/50Hz |
| Engraving Tool Diameter | Ø6 / 8 / 10 / 12 / 14 / 16 mm |
| File Format | G Code / ENG |
| Positioning Accuracy | ±0.02 mm |
| Repeatability | ±0.01 mm |
| Control System | CNC Control System |
| Machine Dimensions | 3400 × 4100 × 2500 mm |
| Weight | 4300 kg |
