Description:
In the world of floor grinding, innovation intersects with productivity through our latest breakthrough: GBD technology.
GBD stands for Gear Bi-Directional, offering two groundbreaking features.
Firstly, it allows for adjustable gear ratios between the gearbox and the plate.
Secondly, it enables the direction between them to be switched, either in the same or counter-wise direction. This pioneering technology empowers operators to tailor the machine is performance to their specific job requirements and desired finish within a gear-driven system. It is a innovation to the flatness, cutting depth, and efficiency of floor grinding, ideal for medium to large size of polished concrete and surface preparation.

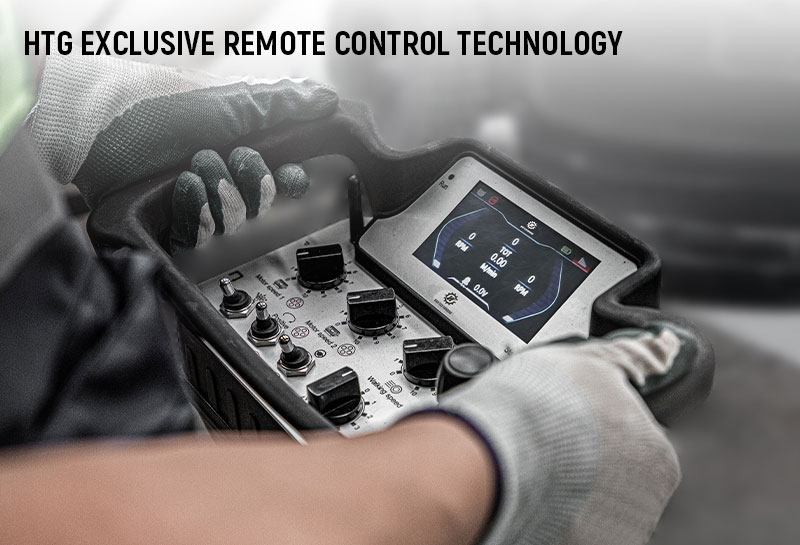

✓ HTG exclusive remote control technology

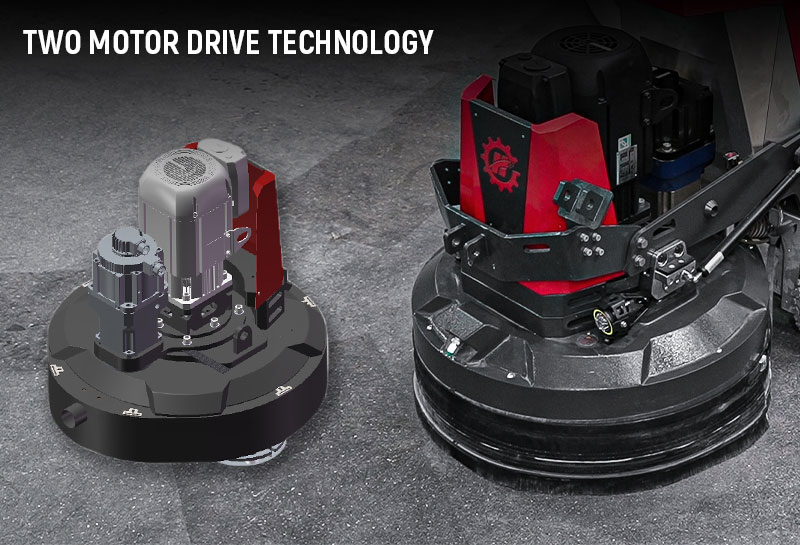

✓ Two motor drive technology

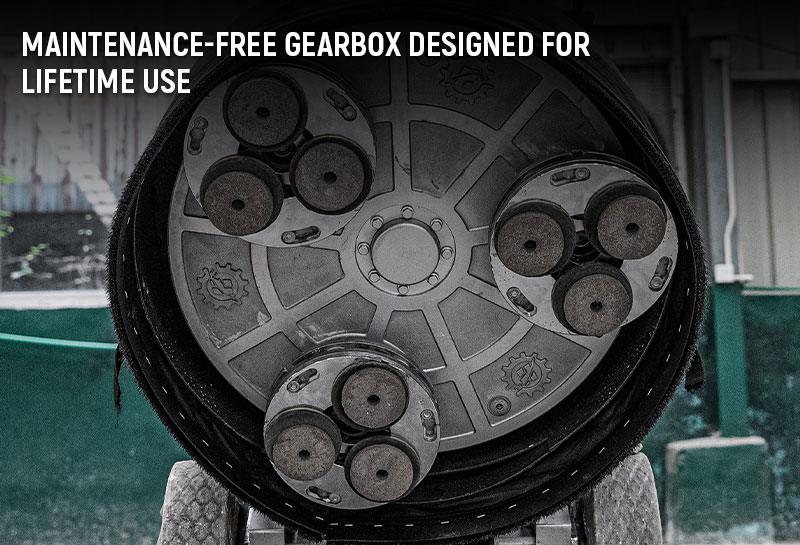

✓ Maintenance-free gearbox designed for lifetime use

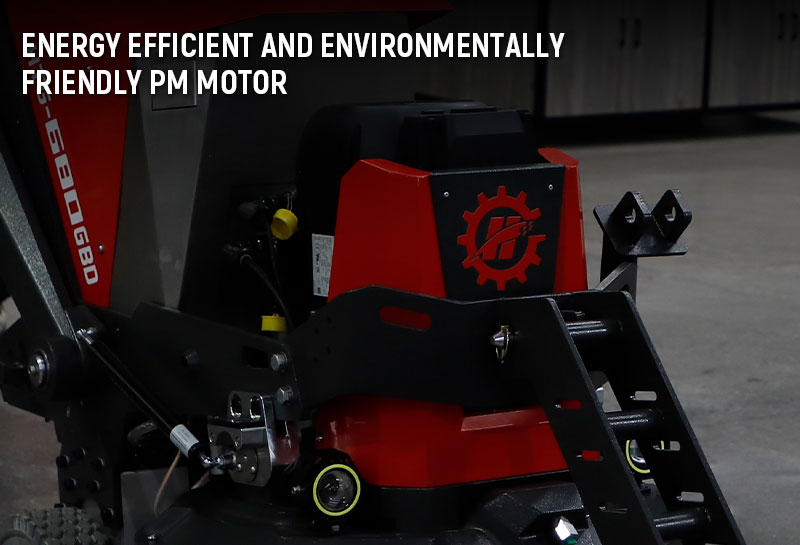

✓ Energy efficient and environmentally friendly PM motor

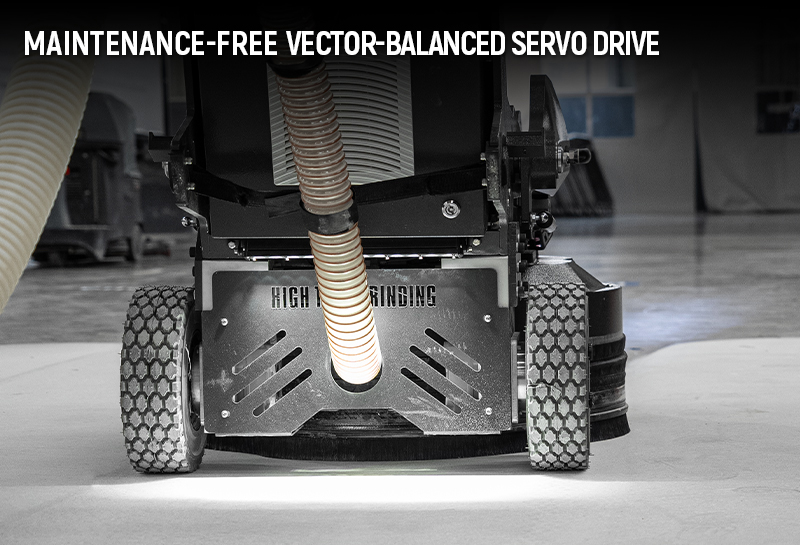

✓ Maintenance-free vector-balanced servo drive

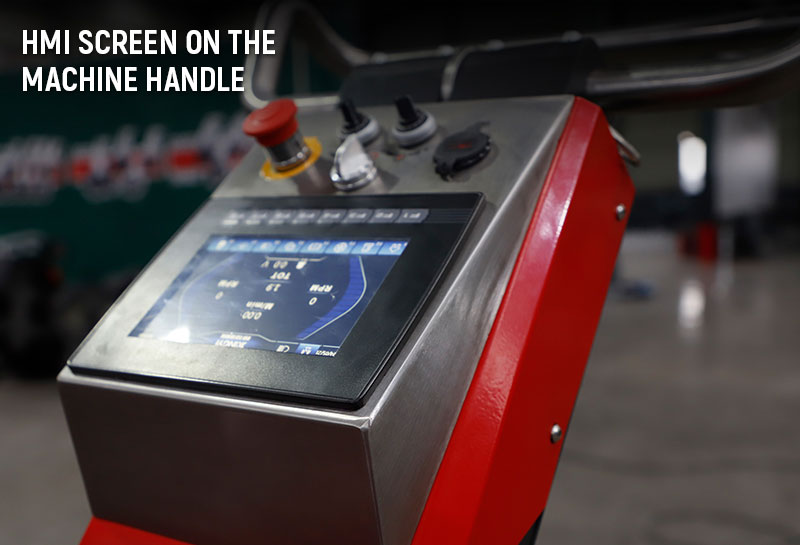

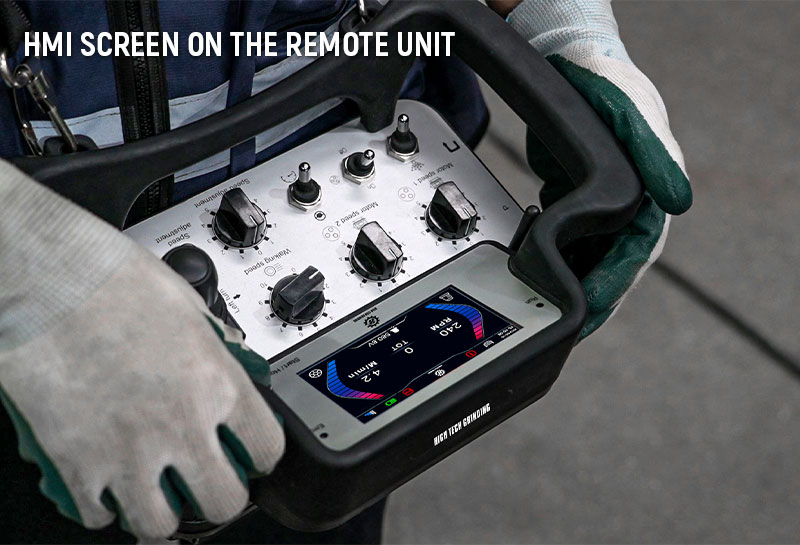

✓ HMI screen on the machine handle & Remote Unit

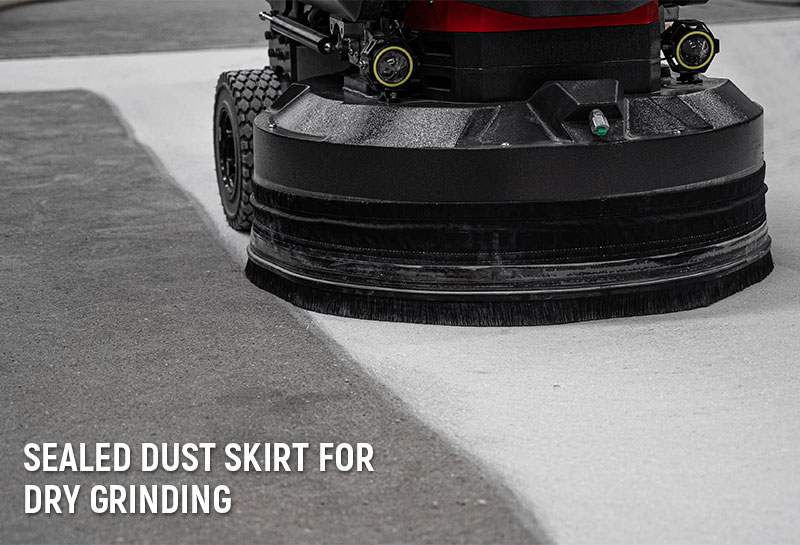

✓ Sealed dust skirt for dry grinding

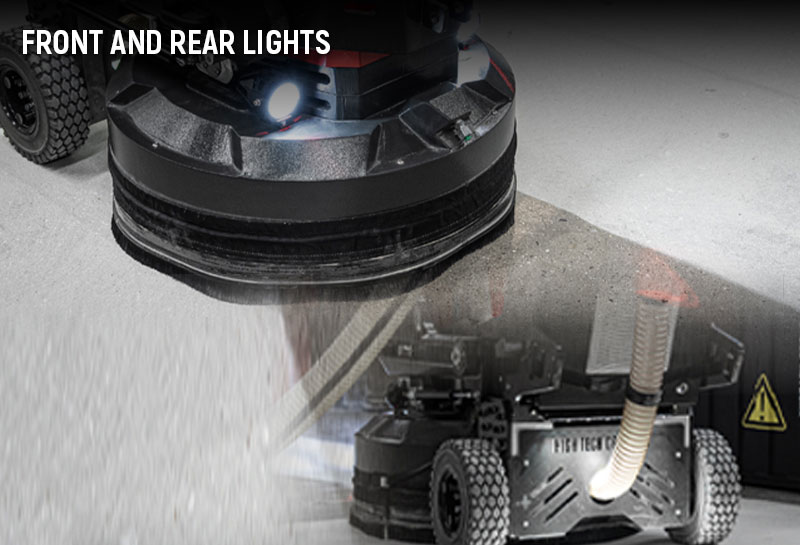

✓ Front and rear lights

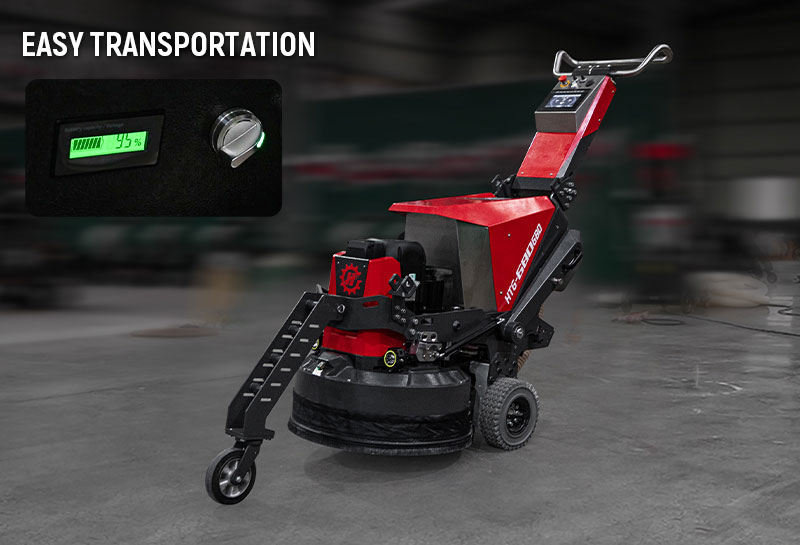

✓ Easy transportation
| Specification | Value |
|---|---|
| Product | HTG-680GBD (11 kW + 1.8 kW) |
| Engine Power (As Rated by the Engine Manufacturer) | PM Motor 11 kW |
| Power Source | Corded |
| Rated Input Power | 12.8 kW |
| Phases | 3 Phase |
| Voltage | 380–480 V |
| Rated Current | 26 A |
| Frequency | 50–60 Hz |
| Grinding Width | 678 mm |
| Number of Grinding Discs | 3 |
| Direction of Rotation | Gear Bi-Direction Floor Grinder |
| Grinding Disc Diameter | 230 mm |
| Grinding Disc Speed (Min) | 350 rpm |
| Grinding Disc Speed (Max) | 1950 rpm |
| Maximum Grinding Pressure | 304.5 kg / 671.3 lbs |
| Type of Operation | Remote-Controlled / Walk-Behind |
| Product Size (L × W × H) | 2399 × 706 × 1861 mm |
| Weight (Complete Product, Without Side Packed Articles) | 612 kg / 1349 lbs |
